MJTP1117 - APEM Inc.

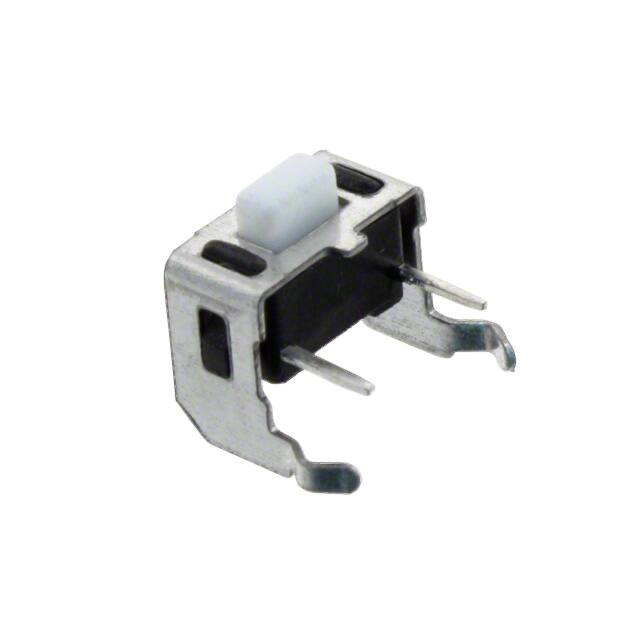

Die Bilder dienen nur als Referenz Siehe Produktspezifikationen

Kynix Teil #: KY42-MJTP1117

Hersteller Teil #: MJTP1117

Produktkategorie: Tactile Switches

Hersteller: APEM Inc.

Beschreibung: Switch Tactile N.O. SPST Rectangular Button PC Pins 0.05A 12VDC 1.57N Thru-Hole Bulk

Verpackung:

Menge:

Bleifrei-Status / RoHS-Status: Bleifrei / RoHS-konform

Vorlaufzeit: 3(168 Hours)

Datenblatt: datasheet

MJTP1117 Datenblatt

Attribute

Attribute Value

Factory Lead Time

6 Weeks

Contact Plating

Silver

Mount

Through Hole

Mounting Type

Through Hole, Right Angle

Actuator Material

Thermoplastic

Contact Materials

Bronze, Stainless Steel

ElectricalLife

100000 cycles

Operating Temperature

-20°C~70°C

Packaging

Bulk

Series

MJTP

JESD-609 Code

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Termination

PC Pin

ECCN Code

EAR99

HTS Code

8536.50.90.40

Voltage - Rated DC

12V

Orientation

Right Angle

Current Rating

50mA

Termination Style

PC Pin

Body Length or Diameter

7.3mm

Body Breadth

5.9 mm

Actuator Type

Rectangular Button

Circuit

SPST-NO

Switch Function

Off-Mom

Contact Resistance

100mOhm

Contact Current(DC)-Max

0.05A

Throw Configuration

SPST

Illumination

Non-Illuminated

Max Voltage Rating (DC)

12V

Mechanical Life

100,000 Cycles

Switch Type

KEYPAD SWITCH

Operating Force

180gf

Actuator Orientation

Side Actuated

Contact (DC) Max Rating R Load

.05A@12VDC

Outline

6.00mm x 3.50mm

Contact Rating @ Voltage

0.05A @ 12VDC

Switch Travel

0.25mm

Number of Switches

Contact Bounce Time-Max

10ms

Features

Tactile Feedback

Body Height

4.3mm

Actuator Length

1.45mm

Actuator Length, Right Angle

3.72mm

RoHS Status

ROHS3 Compliant

Telefon	Teilenummer	Paket	Beschreibung
	MJTP1117		Switch Tactile N.O. SPST Rectangular Button PC Pins 0.05A 12VDC 1.57N Thru-Hole Bulk
	TL1105F160Q		SWITCH TACTILE SPST-NO 0.05A 12V
	MJTP1230B		SWITCH TACTILE SPST-NO 0.05A 12V
	TL1105WF160Q		SWITCH TACTILE SPST-NO 0.05A 12V
	TL1105AF160Q		E-SWITCH - TL1105AF160Q - Tactile Switch, TL1105 Series, Top Actuated, Through Hole, Round Button, 160 gf, 50mA at 12VDC

MJTP1117 Preis
MJTP1117 Verteilers
MJTP1117 Hersteller
MJTP1117 Technische Daten
MJTP1117 PDF
MJTP1117 Datenblätter
MJTP1117 Bild
MJTP1117 Foto
MJTP1117 Teil
MJTP1117 Lagerbestand
MJTP1117 Inventar
MJTP1117 Angebotsanfrage
Kaufen MJTP1117
MJTP1117 Anfrage
MJTP1117 Onlinebestellung

Suchen Sie nach anderen Teilen wie MJTP1

What is tactile switch?

A 'tactile switch' is one type of widely used switch that completes an electrical circuit typically when pressure is applied to the device by the user, which then gives the user a perceptible 'click' or haptic bump in response, indicating current flow. Current flow is turned off when the switch is released.

What are tactile switches good for?

Tactile switches are a type of switch that focus on producing a tactile bump and a relatively quiet audible click with each keystroke. What is this? Tactile switches offer great feedback when typing, so you know by the sound and feel everything is working properly and all of your keystrokes are getting logged.

Are tactile switches clicky?

The tactile clicky switch often referred to as the 'blue' switch due to the color of the slider makes a click sound as the switch is pressed. Generally this switch has a pronounced tactile bump right before it clicks. Blue Switches have a two-part slider mechanism that produces the loud click.
